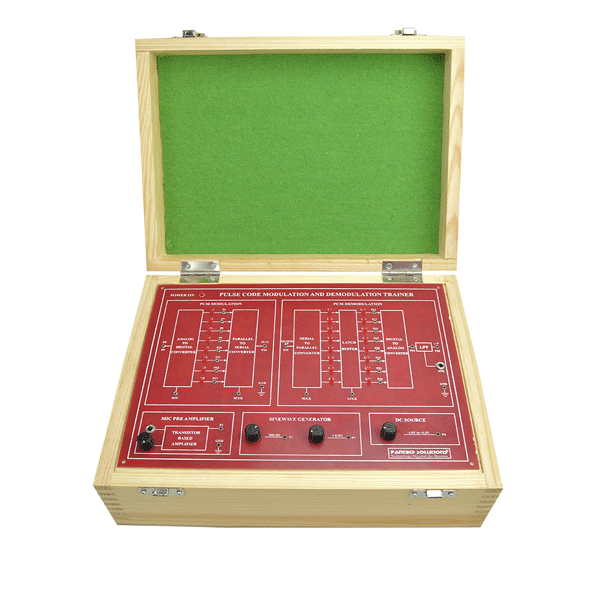

Pulse Code Mod/ Demod Trainer kit

Brand : SATCOM
Catalog ID : NA
Download PDF

---

Pulse Code Modulation / Demodulation (PCM) Trainer Kit is a comprehensive educational training system designed to study the principles of digital communication using Pulse Code Modulation techniques. The trainer enables students to understand the complete PCM process including sampling, quantization, encoding, transmission, decoding, and reconstruction of analog signals. It provides hands-on experience with modern digital communication systems and signal processing concepts used in telecommunication networks. The trainer is ideal for Electronics & Communication Engineering Laboratories, Polytechnic Institutes, Technical Universities, and Vocational Training Centers.

Contact Us

Technical Specification

Complete PCM Transmitter and Receiver System Built-in Analog Signal Generator Sampling and Quantization Circuits PCM Encoding and Decoding Modules Digital Data Transmission Section Reconstruction Filter for Signal Recovery Clock Generator and Synchronization Circuits Test Points for Signal Observation Fault Simulation Facility for Troubleshooting Compatible with CRO/Oscilloscope Analysis Compact and Rugged Educational Design Safe Low Voltage Operation
