Frequency Mod/ Demod Trainer kit
Brand : SATCOMCatalog ID : NA

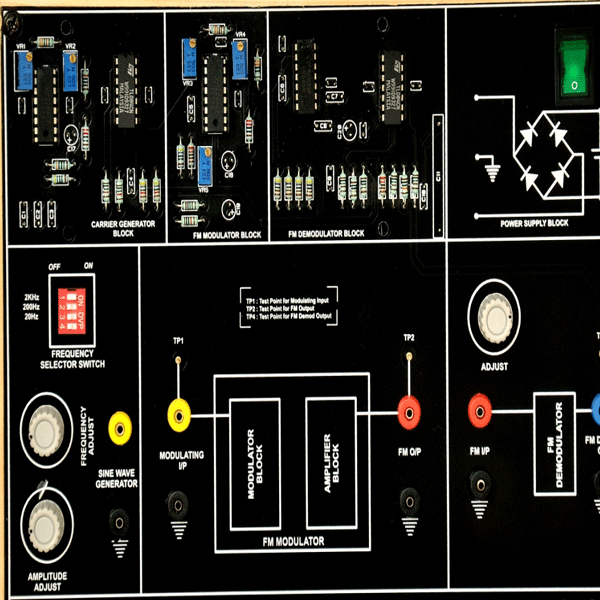

The Frequency Modulation / Demodulation (FM) Trainer Kit is a self-contained communication laboratory trainer designed to demonstrate the principles of frequency modulation and demodulation used in analog communication systems. The trainer enables students to generate FM signals using different modulation techniques and recover the original message signal through various FM demodulators. It provides practical exposure to carrier generation, modulation index, frequency deviation, noise effects, and signal recovery techniques.
Technical Specification
Message Signal : Sine wave Frequency 100 Hz to 2.8 KHz Amplitude 0 to 3V Carrier Signal : Sine wave Frequency 100 KHz Amplitude 5V Modulation : XR 2206 Based Demodulation : PLL Detector & LPF Low Pass Filter : 4th Order LPF Supply Voltage (Board) : +12V, +5V / DC Supply current : 100 mA (Minimum) Input Voltage : 230 V/ 50 Hz AC Interface connectors : 2mm socket
