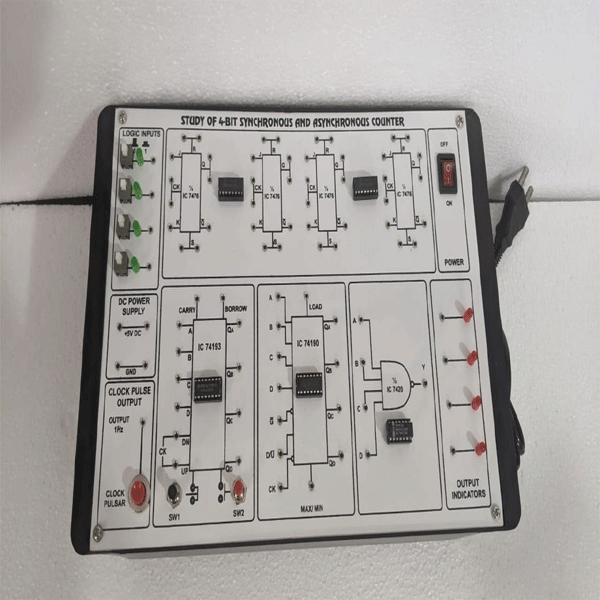

Synchronous / Asynchronous Trainer Kit
Brand : SOFTCOMCatalog ID : NA
The Synchronous / Asynchronous Counter Trainer Kit is a compact digital electronics training system designed to study the operation and characteristics of synchronous and asynchronous (ripple) counters. The trainer enables students to construct, analyze, and verify various counter circuits using flip-flops and counter ICs. It provides practical understanding of counting sequences, frequency division, modulo counters, up/down counting, and programmable counter operations. The kit is widely used in engineering colleges, polytechnics, and technical training laboratories.
Technical Specification
IC 74193 (4-bit Up/Down Binary Counter) IC 74190 (BCD Up/Down Decade Counter) JK Flip-Flop section using IC 7473/7476 IC 7411 (Triple 3-Input AND Gate) IC 7410 (Triple 3-Input NAND Gate) IC 7404 (Hex Inverter)
