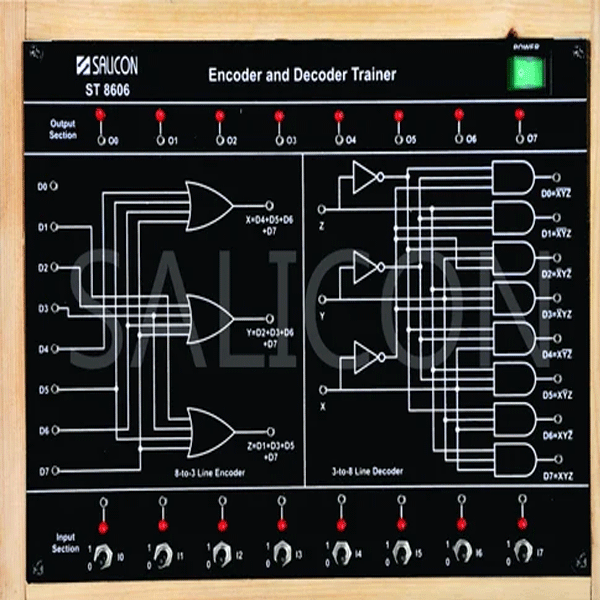

Encoder and Decoder Trainer kit
Brand : SATCOMCatalog ID : NA
ME 718-Encoder & Decoder CircuitThe Instrument has been designed to study : Decimal to BCD encoder, Binary to gray code convert or , BCD to decimal decoder,BCD to 7-segment decoder.Output voltage(Regulated) : 5VDC (Internally connected)Housed in PVC cabinet, circuit diagram printed, connections of ICs ( 7447, 74147, 7442,7486), seven segment display, logic inputs,output indicator & test points brought out at glass epoxy (PCB) front panel. Also provided with patch chords & instruction manual. ME 718A-BCD to Seven segment decoder using IC 7447ME 718B-Binary to gray & Gray to binary code convert orME 718C- Binary to BCD & BCD to Binary code convertor
Technical Specification
A self contained Trainer Functional blocks indicated on board mimic Input-output and Test Points provided onboard LEDs for visual indication of inputs and outputs status SPDT switches for logic selection Built in DC Power Supply Fully documented operating manual Bare board Tested Glass Epoxy SMOBC PCB is used Compact Size
