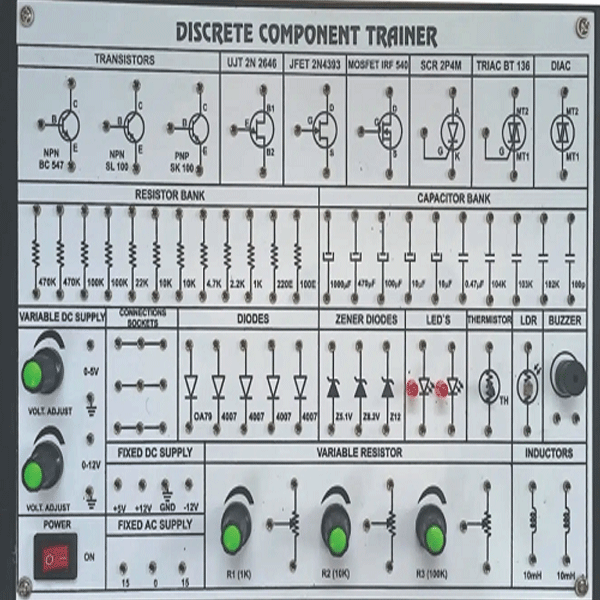

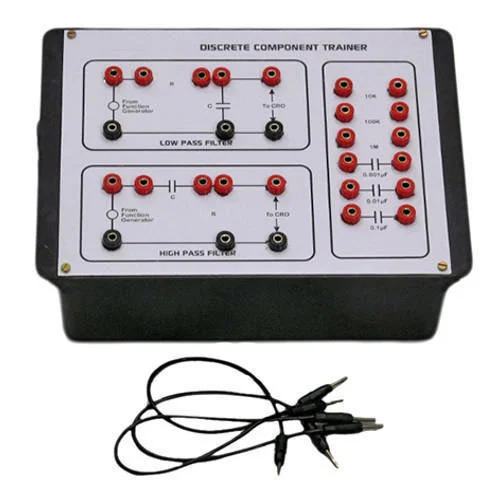

Discrete Component Trainer Kit

Our Discrete Component Trainer is designed to meet all your laboratory needs. Developed under expert supervision, this product is tailored to meet specific client requirements within the scheduled time-frame and is highly appreciated for its reliability and cost-effectiveness.

Technical Specification

TECHNICAL SPECIFICATIONS : * Fixed DC Power Supply IC Regulated +5V DC & ±12V/, 250mA. * Variable DC Power Supply IC Regulated 0-5V DC & 0-12V/, 250mA. * AC Power Supply of 15-0-15V AC/ 250mA. * Operated On Mains Power 230v, 50hz +10% *· Variable Resistors (1K, 10K & 100K) are given on Board. * 3 Pairs of connected 2mm sockets * Rectifier Diode (4 Nos. Diode 4007, OA79 Germanium Diode, Zener Diode (3 Nos.of 5.1V, 8.2V & 12V) * Different values Resistances, Capacitors, Inductors (2 Nos. of 10mH) * DIAC Db33, SCR 2P4M, TRIAC Bt136, MOSFET IRF540, UJT 2N2646, JFET 2N4393, SL100 and SK100 pair, LDR, Thermistor, Buzzer (1 each) & LED’s (2 Nos. Red & Green) · 1 Buzzer.
