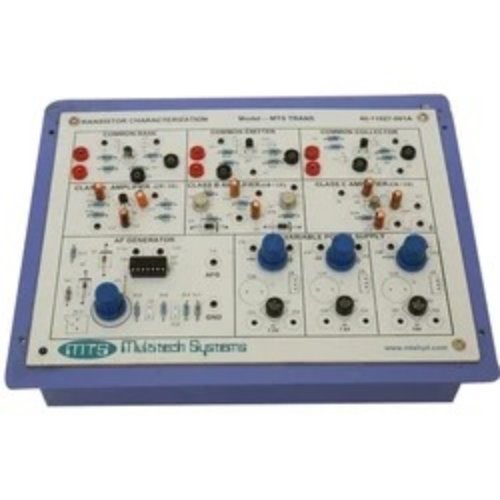

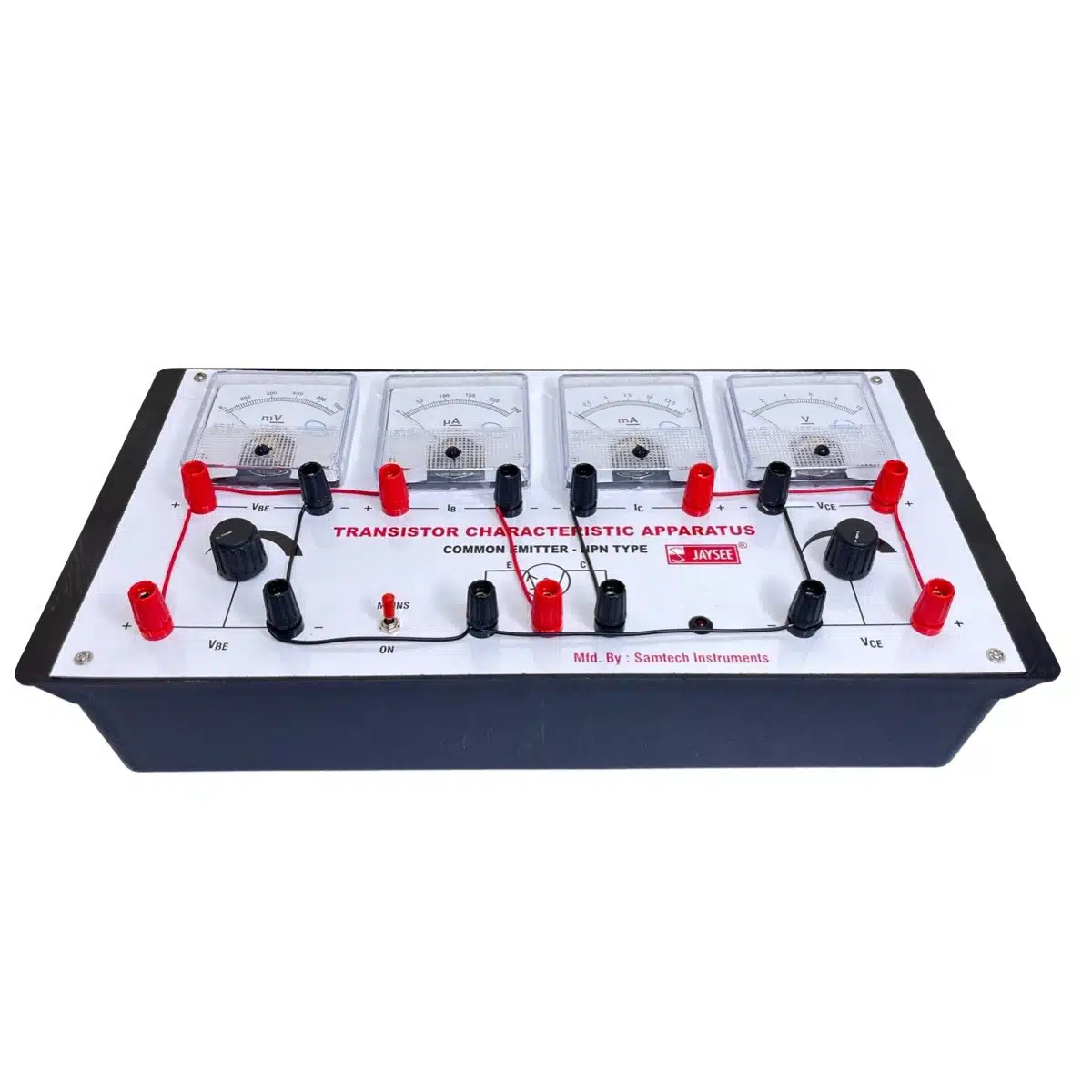

Transistor characteristics Trainer Kit

Transistor Characteristics Trainer Kit – Description The Transistor Characteristics Trainer Kit is a self-contained educational laboratory setup designed to study and analyze the characteristics of NPN and PNP transistors in different configurations. The trainer enables students to perform experiments on transistor behavior and plot input, output, and transfer characteristic curves. It is widely used in electronics and communication engineering laboratories for practical learning of semiconductor devices

Technical Specification

Dual DC power supplies (typically 0–1 V and 0–10 V or equivalent ranges). Built-in analog/digital meters for voltage and current measurement. Operating voltage: 220–230 V AC, 50 Hz. Patch cords and experiment manual included.
